波分复用器

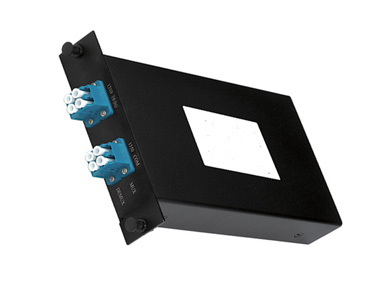

FWDM 复用&解复用 LGX？
Description
产品介绍:
尊龙在线登录的FWDM LGX？槭且恢只赥FF(薄膜滤波器)的波分复用手艺,具备多种封装尺寸、波长可选,典范的FWDM LGX？槭墙1310nm、1490、1550nm等信号复用到一根光纤内传输,或将一根光纤内的多个信号举行解复用,也可以实现两头同时复用息争复用的双光纤传输;大大降低接入本钱,能知足数据、语音、CATV等综合营业的高宽带需求,普遍应用与三网合一、FTTX等.
产品特征:
● 低插入消耗
较低的插入消耗,使FWDM LGX？樵擞檬庇涤薪系偷男藕潘ゼ,从而降低对信号发射器的功率要。
● 高隔离度
较高的隔离度值，使FWDM LGX？槟诶锒嘈藕糯涫本傩谐浞值
信号隔离，有用避免信号之间相互串扰导致传输信号失真。
● 成熟生产工艺
尊龙在线登录的FWDM LGX？榫哂谐墒斓纳ひ,性能稳固可靠,支持-40℃~+85℃的卑劣情形下事情,包管信号的稳固传输。
● 搭配标准机箱尺寸
尊龙在线登录的FWDM复用&解复用LGX？榭梢宰粤κ褂,也可搭配1U机箱运用,其LGX按1/3的19"机箱尺寸设计,在一台1U机箱上搭配3款该类或其他的LGX？槔嘈,增添1U机箱使用率。
● 切合国际标准
尊龙在线登录的FWDM复用&解复用LGX？榍泻蟁oHs,知足TelcordiaGR-1209与GR-1221。
● 装置利便、标识清晰
尊龙在线登录的LGX？楹杏牖涞睦慰糠椒ń幽擅な嚼慰靠,使用UL94V-2认可的尼龙料制成,利便装置与拆解;每个LGX？槊姘迨虑槎丝诰屑す獯蛴〉牟ǔけ晔,利便用户识别。
产品规格:
| 参数 | 单位 | FWDM复用&解复用LGX？ | |
| 事情波长 | nm | 1260~1670nm | |
| IP信号波长 | nm | 1260-1360(upstream) | 1480-1500(downstream) |
| CATV信号波长 | dB | 1540~1560 | |
| 插入插损 | dB | ≤1.5 | |
| 隔离度 | dB | ≥30 | |
| 回波消耗 | dB | ≥45 | |
| 偏向性 | dB | ≥50 | |
| 纹波消耗 | dB | ≤0.5 | |
| 封装尺寸 | mm | L180xW100xH29、L150xW100xH29 | |
| 事情温度 | ℃ | -40~+85 | |
| ? 毗连器类型 | LC/UPC(或客户指定) | ||
