50GHz 2.5Gb/s DWDM SFP Transceiver
Description
50GHz 2.5Gb/s DWDM SFP Transceiver
General
F-tone’s FTCS-Hxxx24-80Dxx Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). It is designed for DWDM Gigabit Ethernet and Fiber-Channel applications.
Product Features
● Up to 2.5Gb/s data links
● Duplex LC connector
● Hot-pluggable SFP footprint
● Uncooled DFB laser transmitter
● RoHS compliant and Lead Free
● Up to 80Km on 9/125um SMF
● 50GHz channel spacing
● Metal enclosure for lower EMI
● Single +3.3V power supply
● Power dissipation <1.8W
● SFP MSA SFF-8074i Compliant
Applications
● Gigabit Ethernet
● Fibre Channel

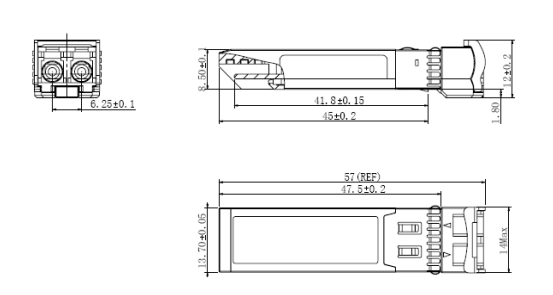

Mechanical Dimensions
Part Number Ordering Information
|
Product Code |
ITU channel |
Frequency |
Center Wavelenth(nm) |
|
FTCS-H62524-80D |
62.5 |
196.25 |
1527.605 |
|
FTCS-H62024-80D |
62.0 |
196.2 |
1527.994 |
|
FTCS-H61524-80D |
61.5 |
196.15 |
1528.384 |
|
FTCS-H61024-80D |
61.0 |
196.1 |
1528.773 |
|
FTCS-H60524-80D |
60.5 |
196.05 |
1529.163 |
|
FTCS-H60024-80D |
60.0 |
196 |
1529.553 |
|
FTCS-H59524-80D |
59.5 |
195.95 |
1529.944 |
|
FTCS-H59024-80D |
59.0 |
195.9 |
1530.334 |
|
FTCS-H58524-80D |
58.5 |
195.85 |
1530.725 |
|
FTCS-H58024-80D |
58.0 |
195.8 |
1531.116 |
|
FTCS-H57524-80D |
57.5 |
195.75 |
1531.507 |
|
FTCS-H57024-80D |
57.0 |
195.7 |
1531.898 |
|
FTCS-H56524-80D |
56.5 |
195.65 |
1532.29 |
|
FTCS-H56024-80D |
56.0 |
195.6 |
1532.681 |
|
FTCS-H55524-80D |
55.5 |
195.55 |
1533.073 |
|
FTCS-H55024-80D |
55.0 |
195.5 |
1533.465 |
|
FTCS-H54524-80D |
54.5 |
195.45 |
1533.858 |
|
FTCS-H54024-80D |
54.0 |
195.4 |
1534.25 |
|
FTCS-H53524-80D |
53.5 |
195.35 |
1534.643 |
|
FTCS-H53024-80D |
53.0 |
195.3 |
1535.036 |
|
FTCS-H52524-80D |
52.5 |
195.25 |
1535.429 |
|
FTCS-H52024-80D |
52.0 |
195.2 |
1535.822 |
|
FTCS-H51524-80D |
51.5 |
195.15 |
1536.216 |
|
FTCS-H51024-80D |
51.0 |
195.1 |
1536.609 |
|
FTCS-H50524-80D |
50.5 |
195.05 |
1537.003 |
|
FTCS-H50024-80D |
50.0 |
195 |
1537.397 |
|
FTCS-H49524-80D |
49.5 |
194.95 |
1537.792 |
|
FTCS-H49024-80D |
49.0 |
194.9 |
1538.186 |
|
FTCS-H48524-80D |
48.5 |
194.85 |
1538.581 |
|
FTCS-H48024-80D |
48.0 |
194.8 |
1538.976 |
|
FTCS-H47524-80D |
47.5 |
194.75 |
1539.371 |
|
FTCS-H47024-80D |
47.0 |
194.7 |
1539.766 |
|
FTCS-H46524-80D |
46.5 |
194.65 |
1540.162 |
|
FTCS-H46024-80D |
46.0 |
194.6 |
1540.557 |
|
FTCS-H45524-80D |
45.5 |
194.55 |
1540.953 |
|
FTCS-H45024-80D |
45.0 |
194.5 |
1541.349 |
|
FTCS-H44524-80D |
44.5 |
194.45 |
1541.746 |
|
FTCS-H44024-80D |
44.0 |
194.4 |
1542.142 |
|
FTCS-H43524-80D |
43.5 |
194.35 |
1542.539 |
|
FTCS-H43024-80D |
43.0 |
194.3 |
1542.936 |
|
FTCS-H42524-80D |
42.5 |
194.25 |
1543.333 |
|
FTCS-H42024-80D |
42.0 |
194.2 |
1543.73 |
|
FTCS-H41524-80D |
41.5 |
194.15 |
1544.128 |
|
FTCS-H41024-80D |
41.0 |
194.1 |
1544.526 |
|
FTCS-H40524-80D |
40.5 |
194.05 |
1544.924 |
|
FTCS-H40024-80D |
40.0 |
194 |
1545.322 |
|
FTCS-H39524-80D |
39.5 |
193.95 |
1545.72 |
|
FTCS-H39024-80D |
39.0 |
193.9 |
1546.119 |
|
FTCS-H38524-80D |
38.5 |
193.85 |
1546.518 |
|
FTCS-H38024-80D |
38.0 |
193.8 |
1546.917 |
|
FTCS-H37524-80D |
37.5 |
193.75 |
1547.316 |
|
FTCS-H37024-80D |
37.0 |
193.7 |
1547.715 |
|
FTCS-H36524-80D |
36.5 |
193.65 |
1548.115 |
|
FTCS-H36024-80D |
36.0 |
193.6 |
1548.515 |
|
FTCS-H35524-80D |
35.5 |
193.55 |
1548.915 |
|
FTCS-H35024-80D |
35.0 |
193.5 |
1549.315 |
|
FTCS-H34524-80D |
34.5 |
193.45 |
1549.715 |
|
FTCS-H34024-80D |
34.0 |
193.4 |
1550.116 |
|
FTCS-H33524-80D |
33.5 |
193.35 |
1550.517 |
|
FTCS-H33024-80D |
33.0 |
193.3 |
1550.918 |
|
FTCS-H32524-80D |
32.5 |
193.25 |
1551.319 |
|
FTCS-H32024-80D |
32.0 |
193.2 |
1551.721 |
|
FTCS-H31524-80D |
31.5 |
193.15 |
1552.122 |
|
FTCS-H31024-80D |
31.0 |
193.1 |
1552.524 |
|
FTCS-H30524-80D |
30.5 |
193.05 |
1552.926 |
|
FTCS-H30024-80D |
30.0 |
193 |
1553.329 |
|
FTCS-H29524-80D |
29.5 |
192.95 |
1553.731 |
|
FTCS-H29024-80D |
29.0 |
192.9 |
1554.134 |
|
FTCS-H28524-80D |
28.5 |
192.85 |
1554.537 |
|
FTCS-H28024-80D |
28.0 |
192.8 |
1554.94 |
|
FTCS-H27524-80D |
27.5 |
192.75 |
1555.343 |
|
FTCS-H27024-80D |
27.0 |
192.7 |
1555.747 |
|
FTCS-H26524-80D |
26.5 |
192.65 |
1556.151 |
|
FTCS-H26024-80D |
26.0 |
192.6 |
1556.555 |
|
FTCS-H25524-80D |
25.5 |
192.55 |
1556.959 |
|
FTCS-H25024-80D |
25.0 |
192.5 |
1557.363 |
|
FTCS-H24524-80D |
24.5 |
192.45 |
1557.768 |
|
FTCS-H24024-80D |
24.0 |
192.4 |
1558.173 |
|
FTCS-H23524-80D |
23.5 |
192.35 |
1558.578 |
|
FTCS-H23024-80D |
23.0 |
192.3 |
1558.983 |
|
FTCS-H22524-80D |
22.5 |
192.25 |
1559.389 |
|
FTCS-H22024-80D |
22.0 |
192.2 |
1559.794 |
|
FTCS-H21524-80D |
21.5 |
192.15 |
1560.200 |
|
FTCS-H21524-80D |
21.0 |
192.1 |
1560.606 |
|
FTCS-H20524-80D |
20.5 |
192.05 |
1561.013 |
|
FTCS-H20024-80D |
20.0 |
192 |
1561.419 |
|
FTCS-H19524-80D |
19.5 |
191.95 |
1561.826 |
|
FTCS-H19024-80D |
19.0 |
191.9 |
1562.233 |
|
FTCS-H18524-80D |
18.5 |
191.85 |
1562.64 |
|
FTCS-H18024-80D |
18.0 |
191.8 |
1563.047 |
|
FTCS-H17524-80D |
17.5 |
191.75 |
1563.455 |
|
FTCS-H17024-80D |
17.0 |
191.7 |
1563.863 |
|
FTCS-H16524-80D |
16.5 |
191.65 |
1564.271 |
|
FTCS-H16024-80D |
16.0 |
191.6 |
1564.679 |
|
FTCS-H15524-80D |
15.5 |
191.55 |
1565.087 |
|
FTCS-H15024-80D |
15.0 |
191.5 |
1565.496 |
|
FTCS-H14524-80D |
14.5 |
191.45 |
1565.905 |
|
FTCS-H14024-80D |
14.0 |
191.4 |
1566.314 |
|
FTCS-H13524-80D |
13.5 |
191.35 |
1566.723 |
